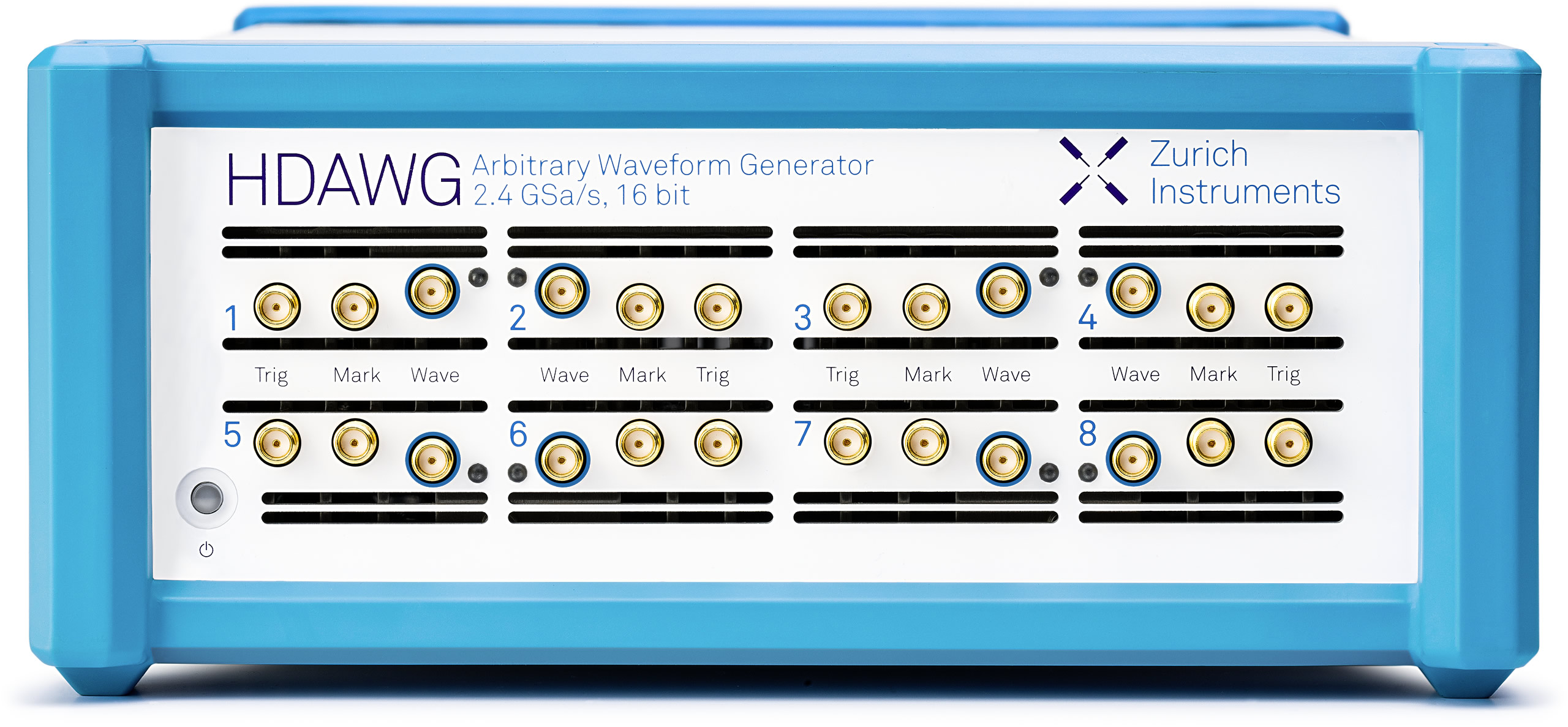

The Zurich Instruments HDAWG multi-channel Arbitrary Waveform Generator has one of the highest channel densities available in its class and is designed for advanced signal generation up to 750 MHz bandwidth. The HDAWG comes with either 4 or 8 DC-coupled, single-ended analog output channels with 16-bit vertical resolution. Output switching is supported between a direct mode with maximized bandwidth and superior noise performance and an amplified mode that boosts the signal amplitude to a maximum of 5 Vpp. Temporal synchronization of up to 18 HDAWGs is supported through the PQSC.
LabOne provides a state-of-the-art programming concept that combines the performance and flexibility of an arbitrary waveform generator with the accessibility of a function generator. The LabOne user interface, the LabOne Q software framework, and a choice of APIs for Python, C, MATLAB®, LabVIEW and .NET enable measurement automation and fast integration into an existing control environment.
